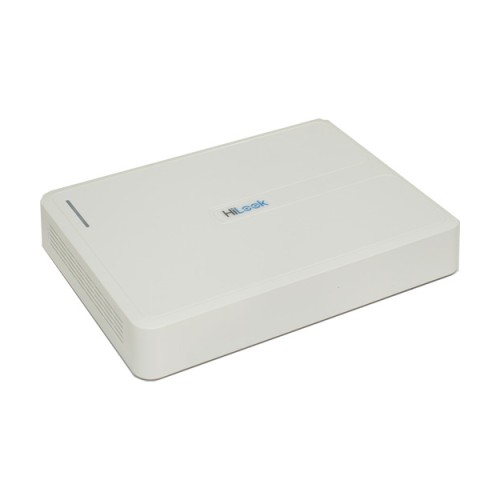

Series - HILOOK

Auxiliary interface
SATA1 SATA interfaces
Capacity Up to 6 TB capacity for each disk
USB interface2 × USB 2.0

Network
Network interface 1, RJ45 10M/100M self-adaptive Ethernet interface
Remote connections 128
Network protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Analog video input
Analog video input 16-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input 1080p25, 1080p30, 720p25, 720p30
AHD input 1080p25, 1080p30, 720p25, 720p30
HDCVI input 1080p25, 1080p30, 720p25, 720p30
CVBS input Support
HDMI1/VGA output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio output 1-ch, RCA (Linear, 1 KΩ)
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ)

Video and Audio
IP video input 2-ch (up to 18-ch) Up to 5 MP resolution

Recording
Video compression H.264+/H.264
Encoding resolution Main stream: When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N) When 1080p lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: CIF/QVGA/QCIF@12fps
Frame rate Main stream: When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video bit rate 32 Kbps to 6 Mbps
Dual stream Support
Stream type Video, Video & Audio
Audio compression G.711u
Audio bit rate 64 Kbps

General
Power supply 12 VDC
Consumption (without HDD)≤ 20W
Working temperature-10 ºC to +55 ºC (14 ºF to 131 ºF)
Working humidity 10% to 90%
Dimensions (W × D × H)285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch)
Weights (without HDD)≤ 1.2 kg (2.6 lb)
